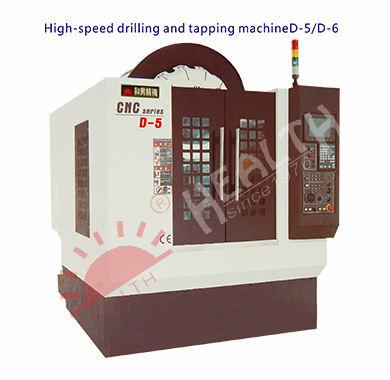

项目Project

单位Unit

D-5

D-6

工作台面积Area of working table

mm

620X420

700X420

X/Y/Z轴行程X/Y/Z axle travel

mm

500/400/300

600/400/300

T型槽(数目-尺寸X间距)T-slot(number-dilmension X interval)

18mm*3个*125mm

18mm*3个*135mm

主轴鼻端至工作台距离Distance between spindle nose and operating platform

mm

200-500

200-500

主轴中心至立柱距离Distance between spindle center to stand column

Mm

420

420

主轴转速Rotation speed of spindle

Rpm

10000rpm/min(标记)12000-20000rpm/min(选配)

主轴锥孔Spindle taper

BT30

BT30

主轴电机功率Spindle motor power

HP

7.5(5.5KW)

7(5.5KW)

三轴电机功率Triaxial motor power

KW

X1.5/Y1.5/Z3.5

X1.5/Y1.5/Z3.5

XYZ轴快速进给XYZ axis rapid feed

mm/min

48000

48000

XYZ轴切削进给XYZ axis cutting feed

mm/min

1-8000

1-8000

定位及重新定位精度Positioning and reposition accuracy

mm

±0.005/300mm/±0.003/300mm

工作台负荷Operating platform load

kg

300

350

电力需求Power demand

kva

20

20

空压规格Air pressure specifications

kg/cm

6-7

6-7

机械重量Machine weight

kg

3600

3700

外型尺寸(长*宽*高) Dimensions (L*W*H)

mm

2200*2200*2300

2300*2300*2400
